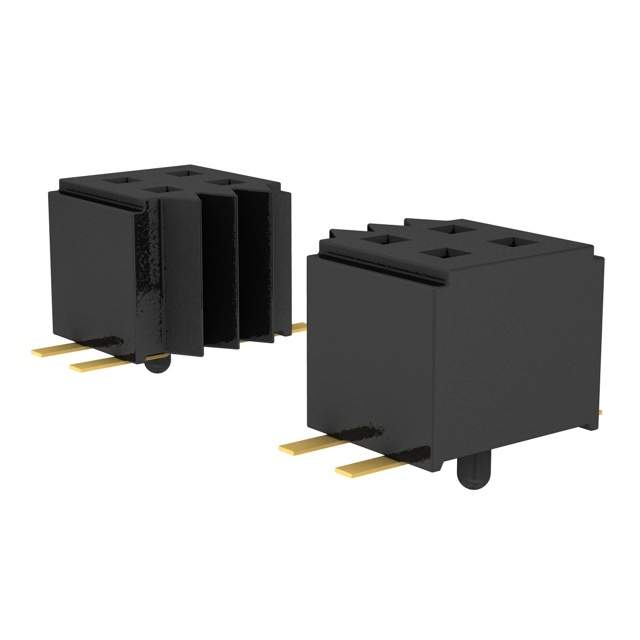

CONN RCPT 24POS 0.039 GOLD SMD
- Код виробника: CLM-112-02-G-D-A
- Виробник: Samtec Inc.
- Код: 612-CLM-112-02-G-D-A-ND
- Інформація: CONN RCPT 24POS 0.039 GOLD SMD
Безкоштовна доставка
Характеристики
24 Position Receptacle Connector 0.039" (1.00mm) Surface Mount Gold
- Base Part Number: CLM-112
- Contact Finish Thickness - Post: 3.00µin (0.076µm)
- Contact Material: Phosphor Bronze
- Contact Shape: Square
- Insulation Material: Liquid Crystal Polymer (LCP)
- Manufacturer: Samtec Inc.
- Packaging: Tube
- Part Status: Active
- Connector Type: Receptacle
- Contact Type: Female Socket
- Style: Board to Board
- Number of Positions: 24
- Number of Positions Loaded: All
- Pitch - Mating: 0.039" (1.00mm)
- Number of Rows: 2
- Row Spacing - Mating: 0.039" (1.00mm)
- Mounting Type: Surface Mount
- Termination: Solder
- Fastening Type: Push-Pull
- Contact Finish - Mating: Gold
- Contact Finish Thickness - Mating: 10.0µin (0.25µm)
- Insulation Color: Black
- Insulation Height: 0.084" (2.14mm)
- Operating Temperature: -55°C ~ 125°C
- Material Flammability Rating: UL94 V-0
- Contact Finish - Post: Gold
- Features: Board Guide
- Current Rating (Amps): 2.8A per Contact
digikey
Доступно штук: 1012
Термін поставки: Доставка протягом 3....6 тижднів
Мімнімальне замовлення: 1 шт.
| Кількість | Ціна, грн з ПДВ |
| 1+ | 613,610 грн |
| 46+ | 506,635 грн |
| 92+ | 493,304 грн |
| 460+ | 413,309 грн |
| 966+ | 365,312 грн |
